R-value insulation chart

Canadian winters are brutal. If your home feels cold even with the heat on, chances are your insulation isn’t pulling its weight. Poor insulation means higher bills, drafty rooms, and wasted energy.

The key to fixing it? Understanding R-value the simple number that measures how well insulation keeps heat in. In this guide, you’ll find an easy R-value chart, regional recommendations across Canada, and quick upgrades that make your home warmer and more efficient.

What Is R-Value

R‑value tells you how well insulation fights heat loss, simple as that. A higher R‑value means better resistance to heat flow and better insulation.

Think of R‑value like the thickness of your winter jacket. The thicker the coat, the better it keeps you warm. Same with insulation, higher R‑value, warmer home.

It’s measured in either imperial (R‑value) or metric (RSI), and Canada uses both. Imperial R‑values are about 5.68 times larger than RSI values .

R-Value Insulation Chart

Here’s a simple, easy-to-read table showing the typical R‑value per inch for common insulation materials you’ll encounter in Canada:

Insulation Material R-Value per Inch Note
Fiberglass (batts/loose) R‑3.0 – R‑4.3 Loose-fill sits around R‑2.2 – R‑2.7 per inch
Cellulose (loose-fill) R-3.2 – R-3.8 Dense-pack performs a bit better can reduce heat loss ~26%
Mineral Wool (rock/slag) R-3.0 – R-4.6 Depends on batts or dense-pack versions
Spray Foam (Closed-cell) R-6.0 – R-7.0 High thermal resistance and acts as vapor/air barrier
Spray Foam (Open-cell) R-3.5 – R-4.0 Lower R-value but expands to seal gaps
Rigid Foam (Polyiso) R-6.0 – R-8.0 Excellent R-value for boards in walls, roofs, foundations

This chart helps you compare insulation types at a glance. In Canada, closed-cell spray foam and polyiso rigid foam stand out for their high R-values per inch. That means in tight spaces you get more insulation power with less thickness ideal for attic retrofit or wall upgrades.

Recommended R-Values in Canada by Region

These figures incorporate building codes and energy-efficiency guidance across key Canadian regions:

Region Attic / Roof (R-Value) Exterior Walls (R-Value) Basement/Crawl Space (R-Value)
General Canada – National Model Code R‑50 minimum; R‑60+ ideal ~R-20 (efficient) ~R-20 (min); R-30 for efficiency
Alberta / Prairies R-60 (RSI 10.43) ~R-22 (RSI 3.08) Not specified in source (keep ~R-20+)
British Columbia (Step Code Guidance) R-50 to R-60–100 depending on Climate Zone/Step Effective R-18 to R-60 (depending on climate zone & Step level) R-20–25 effective Recommended
Net-Zero/Cold Climate Design R-53 to R-86 (RIse 9.3–15.1) R-26 to R-42 exterior walls Not specified , but likely R-20+
Climate Zone 6 (e.g., central/mid-Canada) Ceiling below attics R-49 (RSI 8.67) Exterior Walls R-17–18 (RSI 3.08) Basement Sub-slab R-11 (RSI 1.96)

Highlights by Region

Atlantic Canada

While exact code values vary, home energy programs often suggest attics at around R‑60, walls around R‑20–30, and basements/crawl spaces around R‑20–30 for maximum efficiency.

Quebec & Ontario

Codes typically require R‑50 for attics minimum, but energy incentives and best practices lean toward R‑60 or more. Walls target R‑20–22, and basements range R‑20 to R‑28.

Prairies (Alberta, Saskatchewan, Manitoba)

Alberta’s code aligns with R‑60 for attics (RSI 10.43) and R‑22 (RSI 3.08) for walls. Model energy guides recommend basement walls at R‑20 or better. Saskatchewan’s historic Conservation House model also set early high insulation standards (R‑20).

British Columbia

BC’s building code advises R‑50+ for attics, R‑24 for exterior walls, and R‑20+ for crawl spaces/basements .

Northern Canada

Though specific numbers are rare, colder climates warrant pushing attic targets to R-60+ and boosting wall/basement insulation to R-22–30 or more

How to Read and Use the Chart

Understanding your region’s R-value chart is your key to a cozy, energy-efficient home. Here’s how to make it work for you:

1. Match Your Region

Find your climate zone or region (such as “Prairies” or “BC Interior”) in the table. These recommendations reflect actual building codes and energy programs specific to each area.

2. Compare & Decide

Compare those target R-values to what’s already in your home:

  • If your attic has R‑30 but your region calls for R‑60, you know topping up insulation is a priority.
  • Think beyond a number include air sealing, vapour barriers, and moisture control for real performance. Proper installation is as important as the R-value itself. In Canada’s climate, a well-sealed attic or wall can make dramatic differences.

3. Run the Numbers

Estimate potential payback:

  • Winnipeg’s R-60 attic could save hundreds on heating.
  • Vancouver’s R-50 still helps, but the return isn’t as high due to its milder winters.

4. Factor in Rebates & Comfort

Many local programs reward exceeding code: reaching R-60 or more often qualifies you. Plus, you’ll get an instant boost in comfort, fewer drafts, more consistent temperature, and lower bills.

Beyond the Numbers: Other Factors That Matter

Insulation alone isn’t enough. To truly make R‑values work, you also need airtightness, moisture control, and the right installation practices.

Air Sealing Is the Foundation

Warm air escaping or cold air getting in carries far more moisture and heat than diffusion alone. In fact, air movement is responsible for over 98% of water vapor entering wall cavities. Addressing this drastically cuts energy waste and the risk of condensation.

Air Barriers Outperform Vapor Barriers

While vapor barriers control moisture diffusion, continuous air barriers are the hero of building envelopes. They stabilize indoor climate, reduce energy waste, improve air quality, and boost durability.

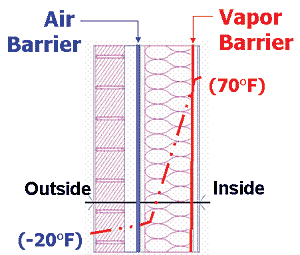

Figure: Air and Vapor Barriers in Wall Construction

Vapor Barriers Need Smart Use

In cold Canadian climates, placing a vapor barrier on the warm (interior) side is critical to prevent condensation. But improper placement or installation especially in high‑humidity areas like basements can trap moisture and lead to mold. Use the right class of barrier and seal it well.

Spray Foam: Seal + Insulate in One

Closed‑cell spray foam (ccSPF) offers dual benefits it insulates and serves as both air and vapor barrier when applied at sufficient thickness (minimum 50 mm) and installed by a licensed contractor, as per Canadian standards.

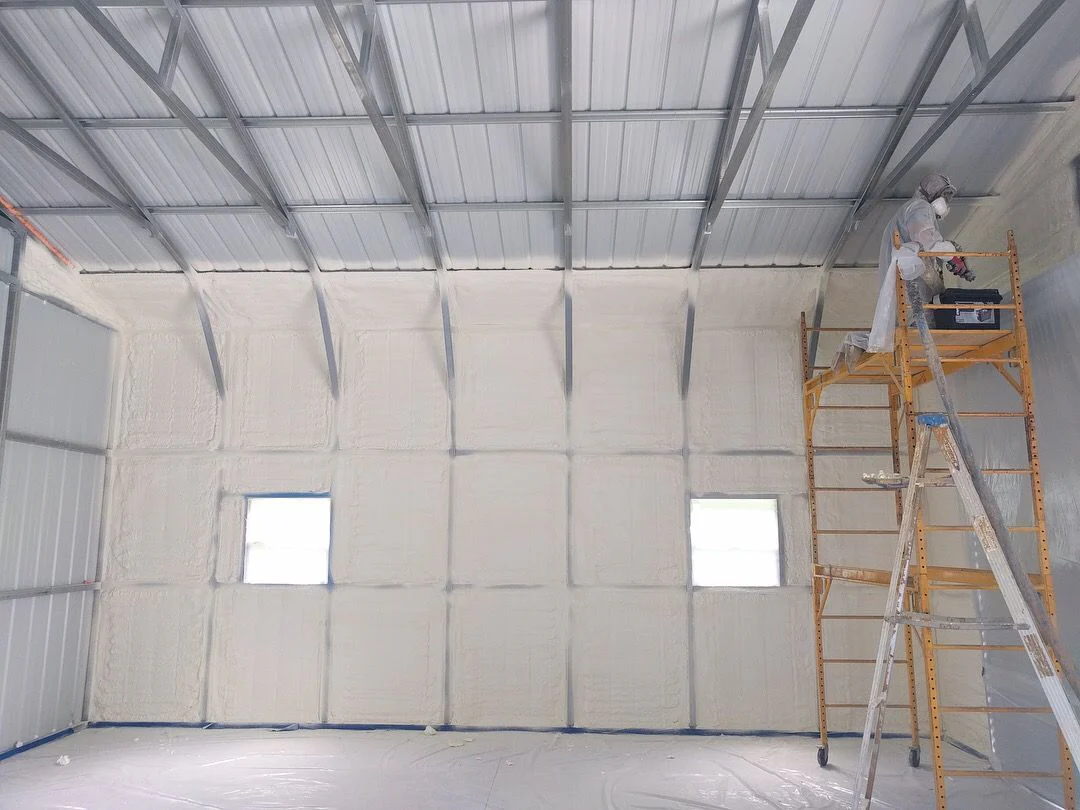

Figure: Spray Foam Insulation in a Metal Building

In Summary

Combining a good R-value with effective air sealing and moisture control gives you the best performance. Think of it like this: insulation is the jacket, air sealing is the zipper, and moisture control is keeping the shell dry.

Quick Wins: How Canadians Can Boost Insulation Today

Want quick, effective insulation upgrades that make a real difference on your comfort and energy bills? Here are top actionable steps that deliver results now:

1. Top Up Attic Insulation First

You lose more heat through the attic than anywhere else. Adding insulation, even a simple top-up can significantly cut energy costs. Start with what’s there: if it’s below R‑30, aim to reach R‑50 or R‑60 depending on your region.

2. Seal & Insulate Rim Joists (Band Joists)

Those rim joists along your basement or crawl space edges are often overlooked but are major sources of drafts and heat loss. Insulating and air-sealing them especially with closed-cell spray foam can improve comfort, reduce bills, and prevent moisture issues like mold.

3. Add Insulation to Basement/Crawl Spaces

For existing homes, interior basement wall insulation with rigid mineral wool, type IV polystyrene, or polyiso foam board is an effective and accessible strategy. These options help control moisture and heat loss significantly.

Conclusion

The right R-value means more than just comfort; it’s the key to saving money and protecting your home through Canada’s toughest winters. Aim for R-60 in the attic, R-22 in walls, and R-20+ in basements for the best results.

Ready to upgrade? At Metal Pro™ Buildings, we design energy-efficient steel building solutions built to handle Canada’s harsh climates. Whether you’re planning a garage, workshop, or custom structure, our insulated building kits help you meet recommended R-values and lower long-term energy costs.

Get your free quote today and start building smarter, warmer, and more efficient.

FAQ

What R-value do I need for exterior walls in Canada?

Most regions recommend R-22 for above-grade walls. Some energy codes and rebate programs suggest going higher (R-24–R-30) for maximum efficiency.

Which insulation material has the highest R-value per inch?

Closed-cell spray foam and rigid foam boards (polyiso) top the chart with R-6 to R-8 per inch, making them ideal where space is limited.

What is the difference between R-value and RSI?

R-value is the imperial measure (used in Canada and the U.S.), while RSI is the metric equivalent. To convert, divide the R-value by 5.68 to get RSI.

How do I read an R-value insulation chart?

An R-value chart shows the insulation type and its resistance per inch. Simply match the material (like fiberglass or spray foam) to its R-value and calculate how many inches you need for your climate zone.

What is a good R-value for attic insulation in Canada?

Most Canadian homes should aim for R-50 to R-60 in the attic. In colder regions like the Prairies or Northern Canada, going higher (R-60+) saves more on heating bills .
